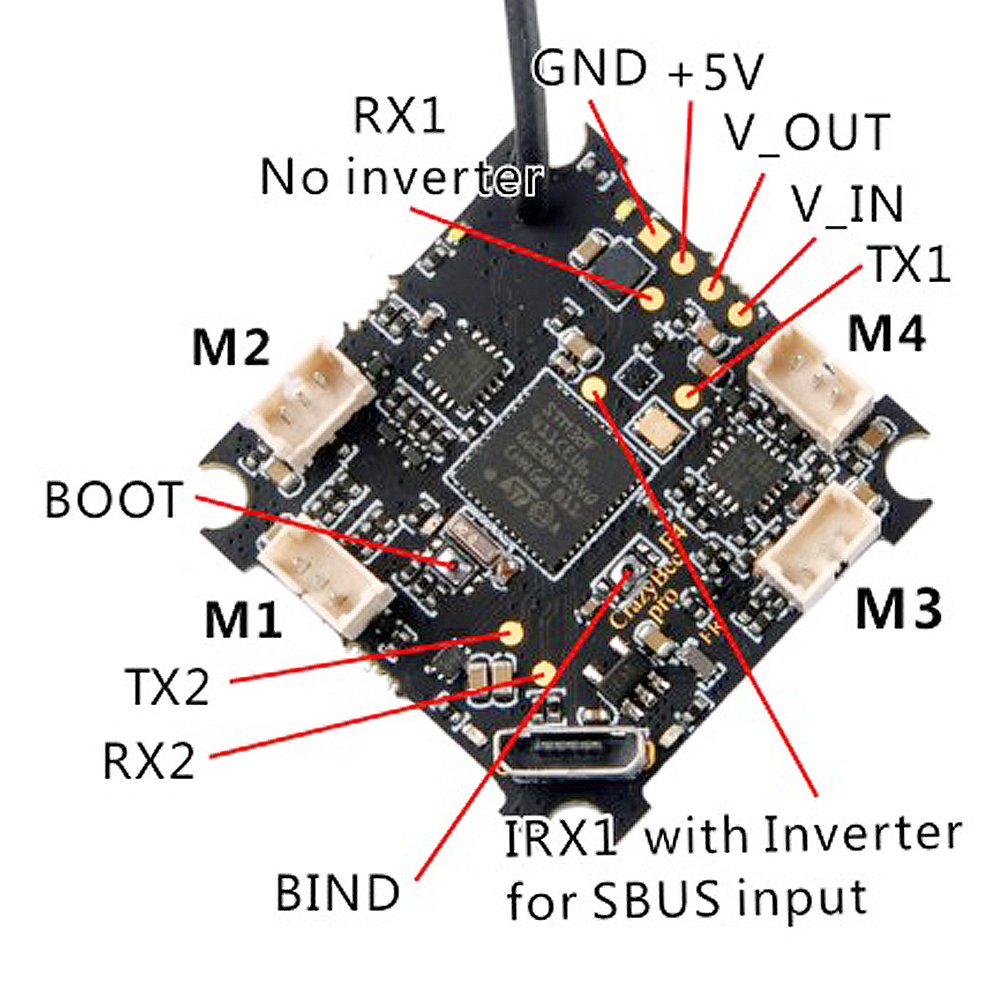

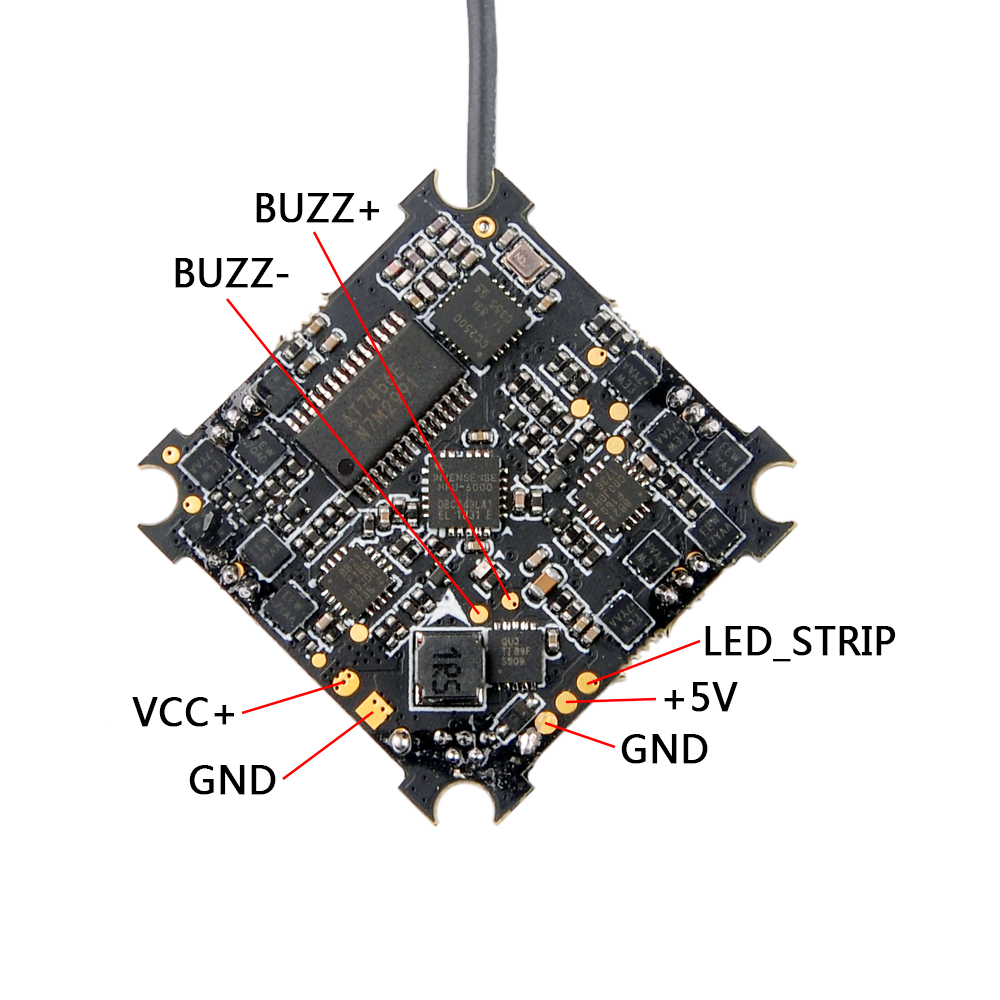

Crazybee F4 PRO 1S-2S NORX / FrSKY 接點圖
Crazybee F4 PRO No RX version firmware target CrazybeeF4DX (無接收韌體版本名稱)
Crazybee F4FR PRO frsky version firmware target CrazybeeF4FR (FrSKY 韌體版本名稱)
CU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
ESC MCU Upgraded to EFM8BB21
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.
Built-in Betaflight OSD (SPI Control)
Built-in Current meter sensor Max up to 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Multi Serial port support
Fully compatible with almost Brushless whoop drone
Weight:4.2g
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
Receiver support No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.
無接收官方手冊下載 參考: 點我 (Crazybee F4 Pro No RX version manual)
FSKY 接收官方手冊下載 參考: 點我 (CrazyBee F4FR Pro Frsky version Manual)
------------------------------------------------------------------------------------------------------------------------------

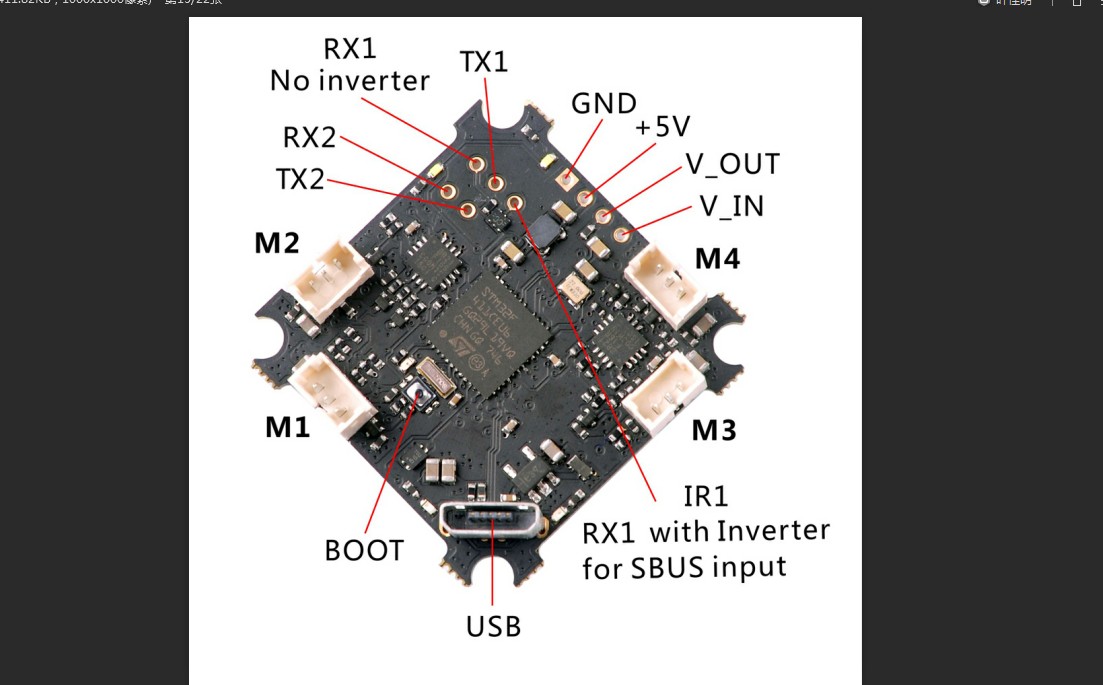

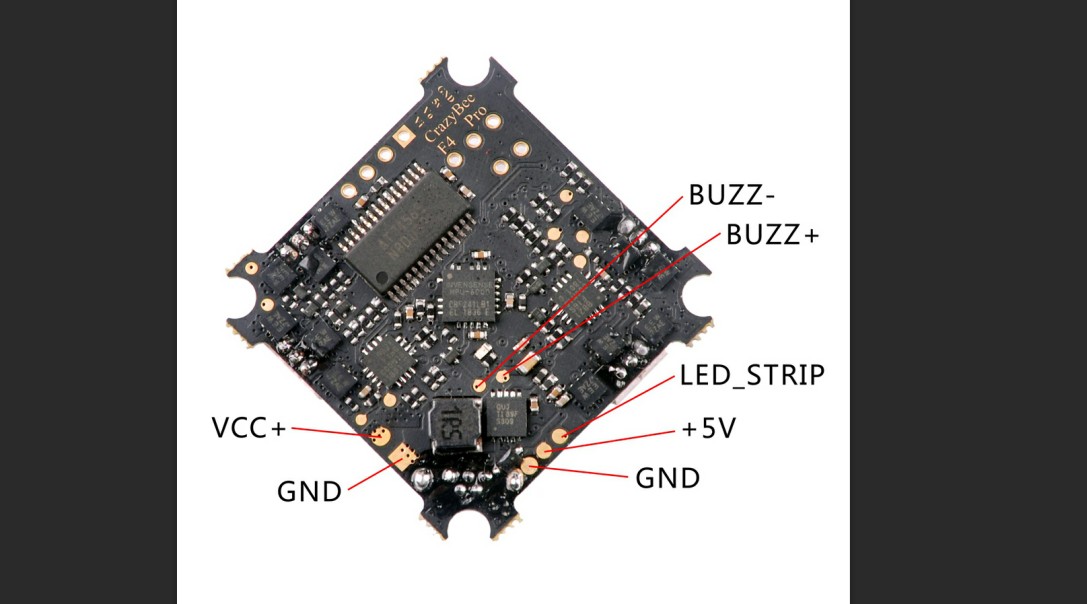

無接收
------------------------------------------------------------------------------------------------------------------------------
FrSKY 版本
